Automatic Lifting R30 Drop Impact Testing Machine 300J

Name: Automatic Lifting R30 Drop Impact Testing Machine 300J
Brand: JINHAIHU
Price: 3300 USD

China Automatic Lifting R30 Drop Impact Testing Machine 300J wholesale

Brand Name : JINHAIHU

Model Number : XJL-300B

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Price : 3300~4000 USD

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 10~15 work days

Packaging Details : Standard export wooden cases

Product name : Testing machine usage drop hammer impact test machine/drop weight test equipment

Travel of Working Table : 0-630mm

Specimen Diameter : φ10~630mm

Hammer Diameter : D25, D90, R5, R10, R30, R50 can optional

Hammer Weight : 0.250~16.000kg 0.125kg/ increment

Max. Impact Height : 2000mm

Contact Now

Testing machine usage drop hammer impact test machine/drop weight test equipment

Product feature:

The mainframe of this testing machine is mainly composed of frame, lifting system,working part and protection system.

The base seat, guiding column, assistant column and fixation beam compose the frame construction, which has extremely high rigidity.

The lifting system is composed of electric motor, two stage worm wheel slowing-down machine,winding machine, wire rope, hosting frame and sling dog, with the advantage of running smooth, low noise.

The basic hammer,hammerhead,balance weight pieces,anvil bed and the centering device are mostly composing the working part.

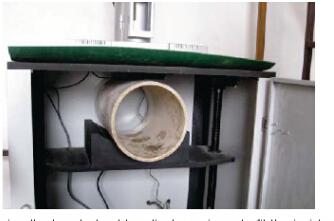

Automatic Lifting R30 Drop Impact Testing Machine 300J

Meet standard:

GB/T14152, 14153,100021,13664,58361,18847,16800,8814 and GB/T 6112, ABN72026,

ISO 4422, ISO 3127, ASTM D2444

Technical parameter:

Model	XJL-300B
Max. impact energy	300J
Max.height	2000mm
Drop weight	0.25-16kg
Impact center and fixture center error	2mm
Hammer head	R5mm,R10mm,R30mm, can be customized
Selected to fit customer requirements	d25,d90
Tabel travel	0mm-630mm
Specifmen diameter	10mm~630mm
Pallet type	120°V-type with or without support,clamp flat pallet
Power	AC220V 50Hz
